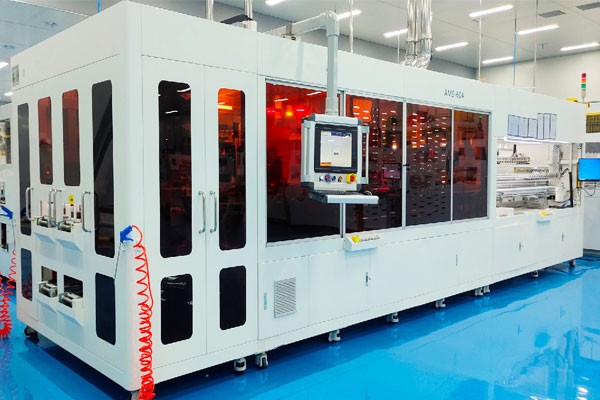

Ultra-High Speed Solar Stringer|Radiant Pv Solar
Description: Automatic production equipment to solder mono or polycrystalline MBB solar cell
Product Model: AMS-60A
Cell Type: Under the 220 crystalline full&half cell
Busbar No.: From 9BB to 20BB
Ribbon Used: Normal flat ribbon/Round ribbon
Ultra-High Speed Solar Stringer Machine | |
Designed capacity | 7,200 pcs/h |
Specification of compatible cell | 156-230mm cell half cut，210-230mm cell 3-4cut 170-200μm( 160-200μm for PERC) 9-20BB (customized for 5-7BB) |
Max. string length | 1,250mm |
Cell Spacing Range | Standard configuration: 1.8-6mm(adjustable); -1~1.8mm high-density welding can be customized |
Ribbon Size | Round ribbonφ0.25-φ0.35mm Other special ribbon customizable |
Flux Application Method | Ribbon immersed |
Welding mode | IR welding |
Breakage ratio | Polycrystal ≤0.2%; monocrystal ≤0.3%( A type cell) |
Power | Full-load power: 60kW; average power: About 30kW; rated power: 45kW |
Air consumption | 100m³/h/set |
| Dimensions and weight | (L)8,566x(W)2,650x(H)2,251mm, 9,500kg |
Features:

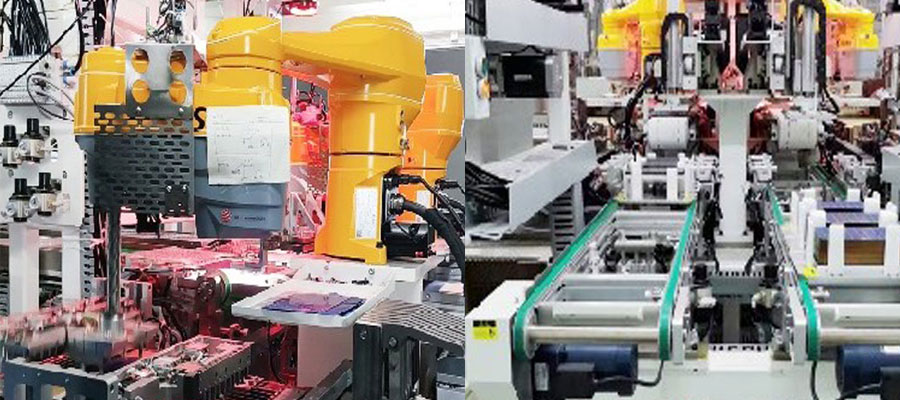

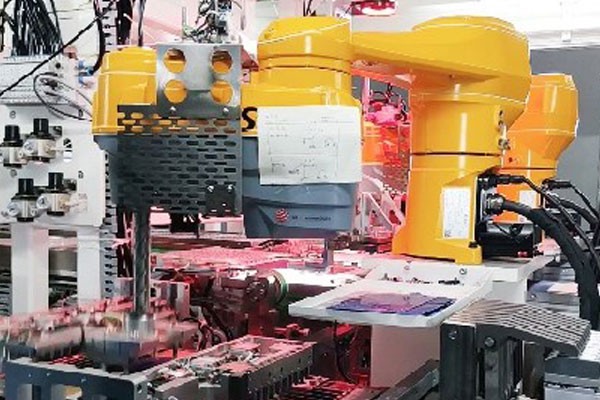

1.4-Axis Robot&Fast Feeding and Blanking Speed

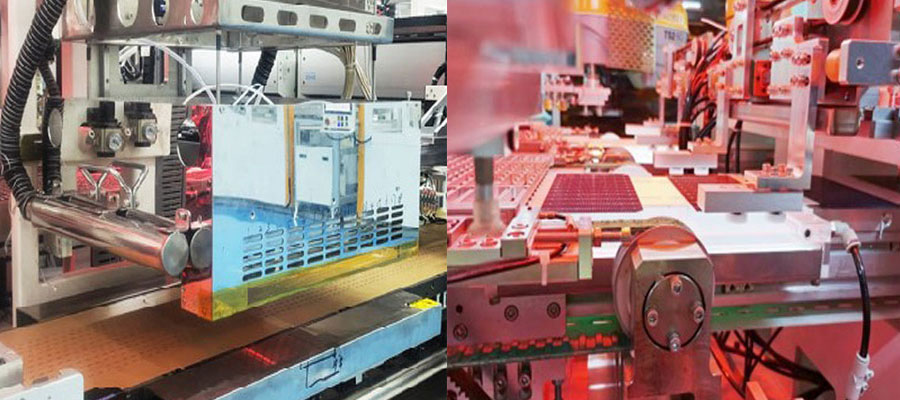

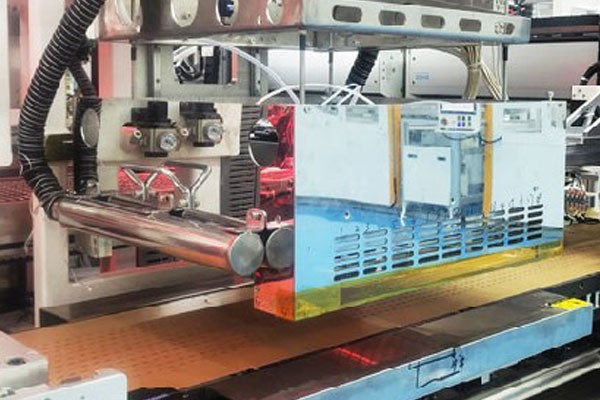

2.Tunnel Lightbox&IR soldering
Company information
As a leading manufacturer of turnkey line solutions for PV intelligent equipment, Radiant is specializing in the R&D, design,production,sales and related services of high-tech automation complete sets of equipment.
High performance and best stability for all equipment,Free factory lay out,Machine installation,commissioning&training
Radiant always adheres to its advanced production technology, improved technological process, excellent product quality, comprehensive after-sales service to continuously provide customers with innovative, efficient and specialized solutions, and has won good reputation and wide recognition in the industry and global market.
